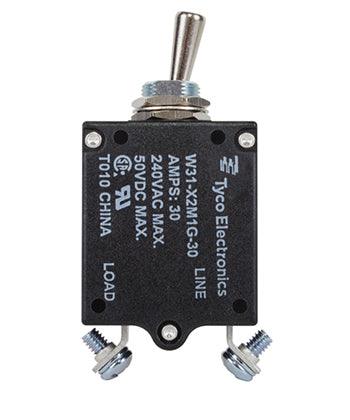

W31X2M1G-30 CIRCUIT BREAKER/30 AMP, AC: 240V, DC: 50V, 50 VDC, panel mount, 1 pole, toggle actuator, silver, screw termination. Height: 35.15 mm Length: 40.64 mm Width: 17.53 mm

TE CONNECTIVITYSKU: W31M-30

Price:
Sale price$70.34
Stock:
In stock

Description

The W31 series are single pole, thermal circuit breakers with toggle actuator and series trip function. They are UL 1077 Recognized as Supplementary Protectors. File E69543, and CSA Accepted as Supplementary Protectors (Appliance Component Protectors), File LR15734.

The W31-X2M1G-35 circuit breaker (EDMO# W31M-35) is rated for 35 amps.

Includes hardware.

Features

  • 0.5 amp to 50 amp ratings may be used as on/off switch

  • Cannot be reset against overload

  • Screw termination

  • Trip-free operation

  • Silver with amp rate marking toggle switch

  • Two hex nuts/lockwasher installed mounting hardware

Specifications

Weight:
Less than 2 oz

Mounting:
Panel mount
15/32 in threaded bushing .320 in (8.13mm) long, double “D”, silver color

Terminals:
Two #8-32 screw terminals (90° to each other termination)

Dielectric Strength:
Over 1,500 volts RMS

Maximum Operating Voltages:
50VDC or 240VAC (to 400 Hz)

Current Rating:
35 amps

Voltage Rating AC:
240 VAC

Voltage Rating DC:
50 VDC
