Description

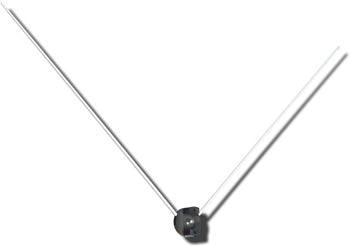

The CI 215 antenna is a two-through-hole-mount style VOR/LOC/GS V dipole antenna with a BNC port. This antenna features a molded mounting stand for increased strength and a single navigation output that can be used in conjunction with signal diplexers to achieve desired avionics signal input. It is designed with detachable radiator elements and is suitable for mounting on vertical stabilizers on light fixed-wing single-engine and multi-engine aircraft.
Features
- Detachable elements
- Integrally molded mounting legs
- Polyester glass laminated radiating elements
- 108–118 MHz and 329–335 MHz frequencies
- Horizontal polarization
- Dipole radiation pattern
- BNC female connector
Specifications
Weight:
0.6 lb
Height:
16 in
Frequency:
108–118 MHz (VOR/LOC)
329–335 MHz (GS)
VSWR:
3.0:1
Polarization:
Horizontal
Radiation Pattern:
Dipole
Impedance RF:
50 Ω
Power RF:
Receive Only
Material:
Delrin Mounts/Glass Laminate Whips
Finish:
Black Housing/Glossy White
Connector:
BNC Female
Temperature:
-55°C to 85°C
Altitude:
35,000
Airspeed:
250 KTAS @ 25,000 ft
FAA TSO:
C34c, C36c, C40a
RTCA Environmental:
DO-160
