VOR GS POWER COMBINER/BNC Female Connector, 108-118 MHz and 329-335 MHz, 50 Ohms, 2 Hole Mount & an Aluminum Finish.

COMANT INDUSTRIESSKU: CI-120-4

Price:
Sale price$466.55
Stock:
In stock

Description

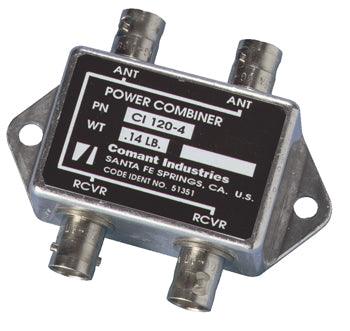

he CI 120-4 power combiner  is a two-through-hole-mount style power combiner with BNC ports that combines two VOR/LOC/GS antenna signals into a dual coaxial cable run for two VHF Nav inputs. This combiner is designed as standard equipment with the CI 120-200G/S VOR/LOC/GS VHF blade antenna set and is suitable for internal aircraft mounting.

Features

  • 108-118 MHz & 329-335 MHz frequencies
  • 2-hole internal aircraft mount
  • Combines two VOR/LOC/GS antenna signals into a dual coaxial cable run for two VHF Nav inputs

Specifications

Weight:
0.14 lb

Height:
0.90 in

Frequency:
108–118 MHz
329–335 MHz

VSWR:
1.5:1, max

Power Split:
6 dB

Isolation (Between Ports):
20 dB

Insertion Loss:
1.5 dB

Amplitude Balance:
± 0.5 dB

Impedance:
50 Ω

Phase (Between Ports):
180º ± 5

Construction:
Die Cast Aluminum

Finish:
Aluminum

Connector:
BNC Female

Mounting Location:
Internal
