VOR GS DIPLEXER/BNC Female Connector, 108-118 MHz and 329-335 MHz, 50 Ohms

COMANT INDUSTRIESSKU: CI-505

Price:
Sale price$349.70
Stock:
In stock

Description

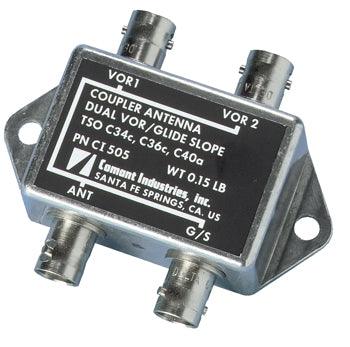

The CI 505 VOR/LOC/GS signal coupler/diplexer  is a two-through-hole-mount style coupler/diplexer with BNC ports. This coupler/diplexer converts a single VOR/LOC/GS antenna signal into two separate VOR/LOC and one GS signal output. It is designed for avionics units that require a split NAV signal and is suitable for internal aircraft mounting.

Features

  • For internal mounting location
  • FAA TSO authorized
  • BNC female connectors
  • 108-118 MHz & 329-335 MHz frequencies

Specifications

Weight
0.20 lbs

Height:
0.88 in

Frequency:
108–118 MHz & 329–335 MHz

VSWR:
1.5:1

Isolation:
20 dB (min) between any receiver port

Insertion Loss:
0.5 dB

Impedance:
50 Ω

Material:
Die Cast Aluminum

Finish:
Aluminum

Connectors:
BNC Female

Mounting Locations:
Internal

FAA TSO:
C34c, C36c, C40a
