Description

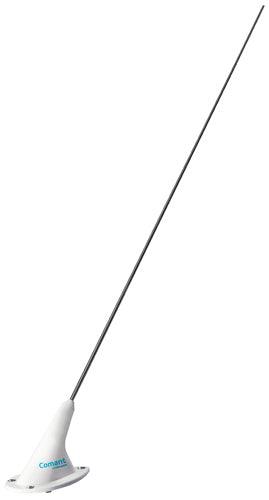

The CI 292-1 antenna is a three-through-hole-mount style VHF communications bare whip antenna with a BNC port. This antenna is equivalent to the CI 291 VHF communications whip antenna except it features a straight tapered stainless steel radiator. It is designed with a narrow mounting pattern and is suitable for top mounting on light fixed-wing single-engine and multi-engine aircraft and helicopters.
Features
- 118-137 MHz frequencies
- Stainless steel straight whip radiator
- Vertical polarization
- Omnidirectional radiation pattern
- BNC female connectors
- Designed for light fixed-wing single-engine and multi-engine aircraft
Specifications
Weight:
0.5 lb
Height:
20.0 in
Frequency:
118–137 MHz
VSWR:
2.5:1
Polarization:
Vertical
Radiation Pattern:
Omnidirectional
Impedance RF:
50 Ω
Power RF:
50 W
Material:
Cast Housing / Stainless Steel Whip
Finish:
White Polyurethane Enamel
Connector:
BNC Female
Temperature:
-55°C to 85°C
Altitude:
50,000 ft.
Airspeed:
250 KTAS
FAA TSO:
C37d, C38d
RTCA Environmental:
DO-160D
Gasket:
C29205 Cork Neoprene
