Description

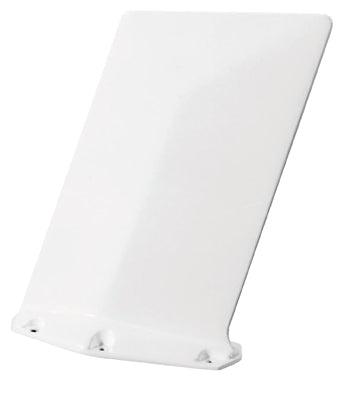

The DM C60 series VHF antenna is a polarized, high frequency communications antenna designed to be mounted on the top or the bottom of the aircraft fuselage. The C60 series communication antennas operate on either 118 MHz – 137 MHz or 116 MHz to 152 MHz frequency range (model depending) for both sending and receiving. The electrical elements of the antenna are completely sealed by a foamed resin within an outer fiberglass housing. The rugged construction of this antenna is ideal for commercial and general aviation use.
Features
- Low voltage standing wave ratio (VSWR)
- Direct current (DC) grounded design
- Standard VHF antenna mounting hole pattern
Specifications
Weight:
1.6 lb
Finish:
white
Connector:
C60-1, -3, -17 (BNC male)
C60-4 (N male)
Frequency Range:
118 MHz – 137 MHz (-1 model)
116 MHz – 152 MHz (-3, -4, -17 models)
VSWR:
2.0:1
Gain:
equivalent to a λ/4 stub
Impedance:
50Ω
Polarization:
vertical
Radiation Pattern:
omni-directional
DC resistance:
grounded
Power Handling:
50 watts
Drag @ sea level:
0.5 lb
Side Load Strength:
> 3 lb
Altitude Performance:
up to 35,000 ft
Approvals:
TSO C37d & C38d
D0160C ENV CAT.:
F2-ABCXXXXXXXXXXXXXXXX
