VHF BLADE ANTENNA/BNC Female Connector, 118-137 MHz, 50 Ohms, 25 Watts, Airspeed 350 Knots, Comm Antenna for Piper. Gasket included. 4 Hole Mount & has a White Finish.

COMANT INDUSTRIESSKU: CI-139

Price:
Sale price$804.32
Stock:
In stock

Description

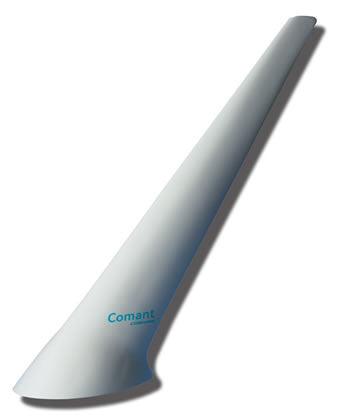

The CI 139 antenna  is a four-internal-hole-mount style VHF communication blade antenna with a BNC port. This antenna is equivalent to the CI 119 VHF communications blade antenna except for the BNC connector located at the centerline of the antenna. It is suitable for either top or bottom mounting with both light and heavy fixed-wing single-engine and multi-engine aircraft and helicopters.

Features

  • 118-137 MHz frequencies
  • Vertical polarization
  • Omnidirectional radiation pattern
  • Valox 420 housing
  • Polyurethane enamel finish
  • BNC female connector

Specifications

Weight:
1.25 lb

Height:
13.00 in

Frequency:
118–137 MHz

VSWR:
2.9:1

Polarization:
Vertical

Radiation Pattern:
Omnidirectional

Impedance (RF):
50 Ω

Power (RF):
25 W

Finish:
Glossy White

Connector:
BNC Female

Temperature Range:
-55ºC to +85ºC

Altitude:
50,000 ft

FAA TSO:
C37d, C38d

RTCA Environmental:
DO-160D

Gasket:
C13904 Cork Neoprene
