VHF BLADE ANTENNA/118-137 MHz, 50 Ohms, 25 Watts, Airspeed 350 Knots, BNC Female-Offset Connector, 4 Hole Mount & a White Finish.

COMANT INDUSTRIESSKU: CI-138

Price:
Sale price$999.02
Stock:
In stock

Description

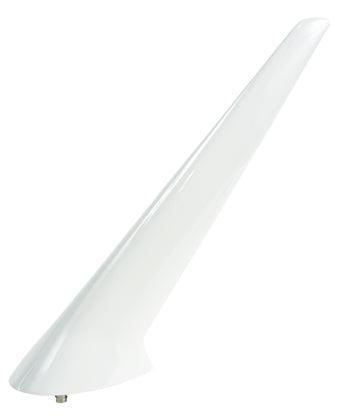

The CI 138 antenna  is a four-internal-hole-mount style VHF communication blade antenna with offset BNC port. This antenna is equivalent to the CI 119 except for the mounting hole pattern and BNC connector location. It is suitable for either top or bottom mounting with both light and heavy fixed-wing single-engine and multi-engine aircraft and helicopters.

Features

  • 118–137 MHz frequency range
  • Aerodynamic base
  • 4-hole mounting
  • Valox 420 housing
  • For light and heavy fixed-wing single-engine and multi-engine aircraft and helicopters

Specifications

Weight:
1.25 lbs

Height:
13 in

Frequency:
118–137 MHz

VSWR:
2.9:1 Max

Polarization:
Vertical

Radiation Pattern:
Omnidirectional

Impedance:
50 Ω

Power:
25 W

Material:
Valox 420

Finish:
Glossy White

Connector:
Offset BNC Female

Temperature:
-55ºC to 85ºC

Altitude:
50,000 ft

FAA TSO:
C37d, C38d

RTCA Environmental:
DO-160D

Gasket:
C13804 Cork Neoprene
