Key Features:
- CB52-E
- Outdoor
- Bullet Series Camera
- 5 MP
- 2688 x 1944
- 2.8mm Focal Length
- P–Iris
- Vari-focal
- With 30 days onboard storage [256GB]
- Network surveillance camera
- PoE Plus Class 2
- Warranty 10 years
Camera features:
|
Image Sensor
|
1 / 2.8″ Progressive CMOS
|
|
Sensor Resolution
|
5MP (2688 x 1944)
|
|
Lens Type
|
Varifocal; motorized zoom
|
|
Focal Length
|
2.8mm – 8mm
|
|
Aperture
|
F1.3 – F2.4
|
|
Iris
|
P–Iris
|
|
Field of View (LDC ON2)
|
Horizontal: 41° – 99° (39° – 95°)
Vertical: 30° – 74° (30° – 74°)
Diagonal: 50° – 125° (48° – 110°)
|
|
Camera Movement
|
Tilt: 0° to 90°
Pan: 360°
Rotation: 360°
|
|
Shutter Speed
|
1 / 30 sec. to 1 / 10,000 sec.
|
|
Day/Night
|
IR-cut filter for day and night function
|
|
IR Cut Filter
|
Yes
|
|
IR Range
|
30m / 98ft
|
|
Minimum Illumination
|
0.009 lux @ F1.9 (Color)
0 lux with IR Illuminators on
|
|
Onboard Storage
|
Capacity: 256GB
Card: MicroSD, SDXC
|
|
CPU
|
Ambarella CV25S88
|
Standard video settings
|
Compression
|
H.265, H.264
|
|
Frame Rate
|
24fps
|
|
Live Streaming Settings
|
High quality (HQ): 1,000 - 4,500 Kbps (1,500 Kbps default)
Standard quality (SQ): 600 Kbps
|
|
Historical Video Settings
|
Adaptive quality
|
Standard audio settings:
Power and network:
|
Power Input
|
With IR: IEEE 802.3at Type 2 PoE+
Without IR: IEEE 802.3af Type 1 PoE
Extended temperature range: IEEE 802.3at Type 2 PoE+
|
|
Power Consumption
|
With IR: 37-57V, 0.38-0.25A, 14W
Without IR: 37-57V, 0.09-0.06A, 3.46W
Extended temperature range: 37-57V, 0.61-0.37A, 22.57W
|
|
Connectivity
|
RJ-45 cable connector for network/PoE connection; 10 / 100 Mbps
|
|
RTSP
|
RTSP 1.0
RFC 2326
Max concurrent streams: 2
Audio support: No
|
General:
|
Operating Temperature
|
-40°C to 50°C / -40°F to 122°F
|
|
Humidity
|
0 to 90%
|
|
Certifications
|
FCC, ICES, CE, UKCA, RCM, VCCI, BIS, UL/IEC62368-1, IP67 weather rating, IK10 impact rating, NDAA
|
|
LED Indicator
|
System power and status indicator
|
Mechanical:
|
Weight
|
Camera: 1464g / 51.6oz
Mount plate: 33g / 1.16oz
|
|
Dimensions
|
Ø: 85mm / 3.35in L: 254mm / 10in
|
|
Body
|
Aluminum
|
Software capabilities:
|
Alerts
|
Camera status, motion detection, people detection, vehicle detection, Person of Interest detection, crowd detection
|
|
People analytics
|
People search, attribute search, face search, Occupancy Trends, motion search, trajectory analysis
|
|
Vehicle analytics
|
Vehicle search, attribute search
|
|
Streaming and storage
|
Cloud backup, configurable retention days, selectable storage location, low bandwidth mode, timelapse, RTSP
|
|
License Plate Recognition
|
License Plate of Interest alerts, license plate indexing
|
|
Sharing and privacy
|
Live Links, live face blur, privacy regions, audit log
|
Description:

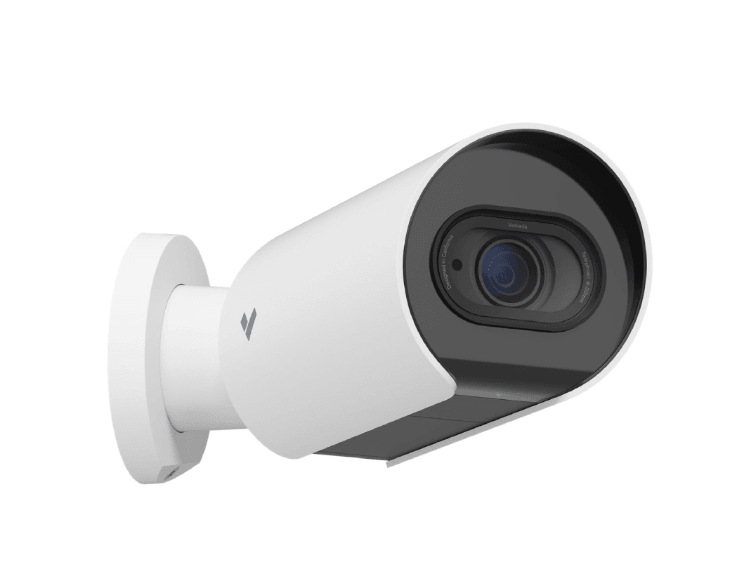

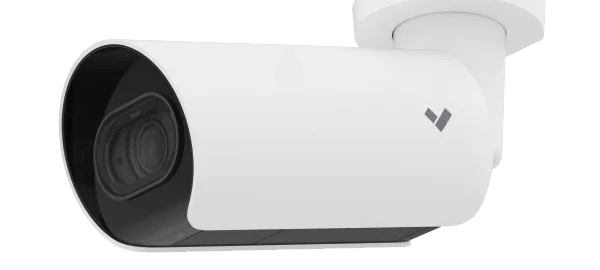

Elevate your security with the Verkada CB52-E Outdoor Bullet Camera, a sophisticated network surveillance camera that redefines the standards of protection. Engineered for excellence, this camera seamlessly integrates into your security infrastructure, ensuring the utmost vigilance in both indoor and outdoor environments.
Adaptive Quality Recording for Precise Surveillance:
Our network surveillance camera employs adaptive quality recording, capturing both standard and high-quality streams. Standard quality video is stored according to your specified retention period, while high-quality video adjusts dynamically based on detected motion. Stay in control of your security footage with Verkada's innovative technology. Learn more about this cutting-edge technology here.
Lens Distortion Correction (LDC) for Crystal-Clear Imagery:
Experience a distortion-free perspective with Lens Distortion Correction (LDC). This feature crops the sensor's field of view to provide a rectified, undistorted output image. Immerse yourself in clear and accurate surveillance with the Verkada CB52-E.
Extended Temperature Range for Unmatched Durability:
Operates confidently in extreme conditions with the CB52-E's extended temperature range, functioning flawlessly even in temperatures below -8.5°C / 16.7°F. Activate the infrared (IR) feature with peace of mind, knowing your security cameras endure the harshest environments.
Adjustable Frame Rate for Precision Monitoring:
Customize your surveillance experience with adjustable frame rates, providing flexibility to capture every detail with precision. Take advantage of our support for tailored settings that meet your specific security requirements.
Trajectory Analysis Enhances Security Measures:
Both indoors and outdoors, the CB52-E supports trajectory analysis, offering comprehensive security coverage. Whether you're focused on network surveillance or general security, this camera, along with various Verkada models, ensures intelligent trajectory analysis for advanced threat detection.
Invest in the Verkada CB52-E Outdoor Bullet Camera – the epitome of network surveillance excellence. Safeguard your premises with security cameras that go beyond expectations. Order now to embrace a new era of intelligent, adaptable, and powerful surveillance technology for ultimate peace of mind.
