UHF ANTENNA/BNC Female Connector/ TNC/ N (specify), 406-512 MHz, 50 Ohms, 50 Watts, Airspeed 600 Knots, No TSO Approval, 4 Hole Mount & a White Polycarbonate Finish.

COMANT INDUSTRIESSKU: CI-275

Price:
Sale price$1,119.50
Stock:
In stock

Description

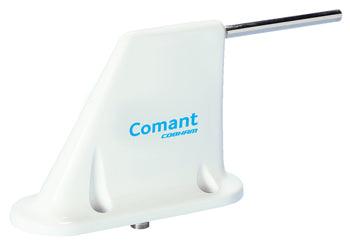

The CI 275 antenna is a four-through-hole-mount style UHF Communication blade antenna with a BNC port. This antenna is designed to support the 406–512 MHz frequency range and is suitable for bottom mounting on both light and heavy fixed-wing single-engine and multi-engine aircraft and business jets

Features

  • Frequency covered: 406-512 MHz
  • Encased in a glass reinforced polyester molded shell
  • Standard two stud mounting configuration
  • Includes a BNC connector

Specifications

Weight:
0.5 lb

Height:
3.6 in

Frequency:
406–512 MHz

VSWR:
2.0:1

Polarization:
Vertical

Radiation Pattern:
Typical 1/4 wave stub

Impedance:
50 Ohms

RF Power:
100 Watts Max. Average

Material:
Nickel Plated

Finish:
White Polycarbonate

Connector:
BNC
