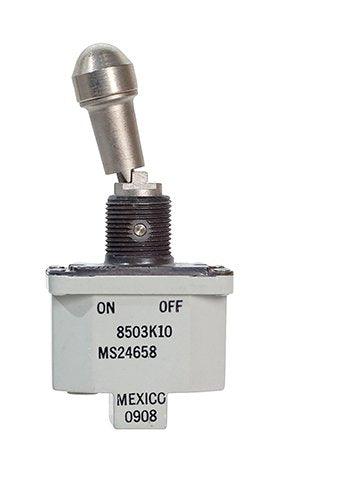

TOGGLE SWITCH/SPST (single pole single throw), ON-NONE-OFF, screw terminals, environmentally sealed.

EATONSKU: 8503K10

Price:
Sale price$89.90
Stock:
In stock

Description

The 8503K series are environmentally sealed toggle switches that are completely protected from dust, moisture, and other contaminates. The lever lock mechanism prevents accidental switch operation.

Features

  • Locking lever safety mechanism (must be pulled outward for toggle operation)
  • Threaded panel mount
  • Thermoset molding materials meet flame retardant requirements
  • Molded-in terminal inserts and terminal numbers
  • Environmentally sealed per MIL-S-3950
  • MS approved and QPL'd per MIL-S-3950
  • Life: 20,000 operations at rated load 40,000 operations mechanical life

Specifications

Bushing:
15/32"" - 32 thread

Temperature Range:
-85F to +160F (-65C to +71C)

Contact current max:
20A

Contact Voltage AC:
115V nominal

Contact Voltage DC:
28V

Contact configuration:
Single-pole, Single-throw (SPST)

Switch operation:
ON-OFF

MS part number:
MS24658-22D
