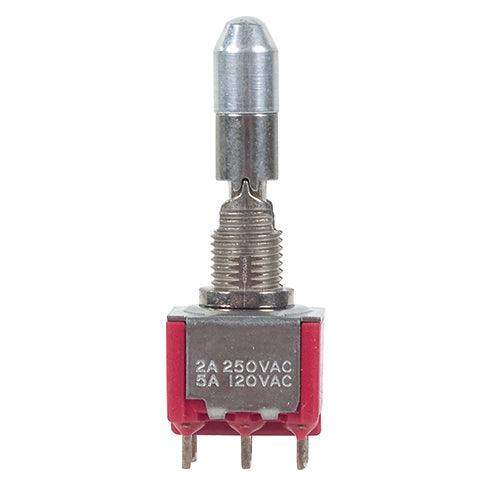

TOGGLE SWITCH/SPDT (single pole double throw), ON-OFF-ON, panel mount, silver plating, epoxy terminal seal.

C & K COMPONENTSSKU: 7103K2ZQE

Price:
Sale price$34.03
Stock:
In stock

Description

The 7000 series miniature toggle switch has silver contact solder lug terminations. The threaded bushing is designed for panel mount installations with 1/4"" opening.

Version 7103K2ZQE is a single-pole double-throw miniature toggle switch. Positions: ON-OFF-ON with 3-position lever lock

Features

  • Locking lever safety mechanism (must be pulled outward for toggle operation)
  • Threaded panel mount
  • 10mΩ at 2 to 4VDC Initial contact resistance
  • 10⁹Ω Minimum insulation resistance
  • 1000VRMS at sea level Minimum dielectric strength
  • Epoxy terminal-seal compatible with bottom wash cleaning
  • RoHS Compliant
  • Life: 100,000 make-and-break cycles at full load

Specifications

Bushing:
1/4-40 UNS-2A

Temperature Range:
-22ºF to 185ºF (–30ºC to 85ºC)

Contact current max:
5A

Contact Voltage AC:
115V nominal

Contact Voltage DC:
28V

Contact configuration:
Single-pole, double-throw (SPDT)

Switch operation:
ON-OFF-ON
