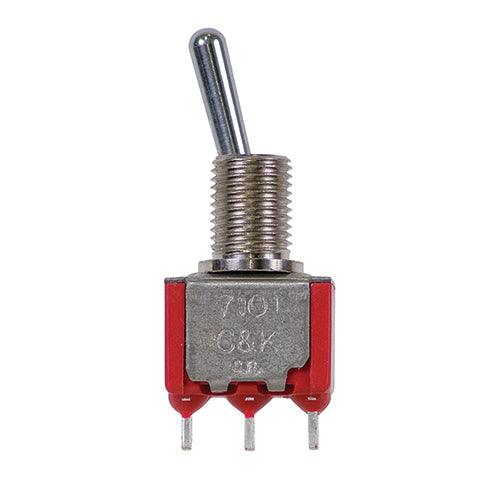

TOGGLE SWITCH/SPDT (single pole double throw), ON-NONE-ON, hole mount, silver plating, epoxy terminal seal.

C & K COMPONENTSSKU: 7101SH3ZQE

Price:
Sale price$34.10
Stock:
In stock

Description

The 7000 series miniature toggle switch has silver contact solder lug terminations. The threaded bushing is designed for panel mount installations with 1/4"" opening.

Version 7101SH3ZQE is a single-pole double-throw miniature toggle switch. Positions: ON-ON

Features

  • Threaded panel mount
  • 10mΩ at 2 to 4VDC Initial contact resistance
  • 10⁹Ω Minimum insulation resistance
  • 1000VRMS at sea level Minimum dielectric strength
  • Epoxy terminal-seal compatible with bottom wash cleaning
  • RoHS Compliant
  • Life: 100,000 make-and-break cycles at full load

Specifications

Bushing:
1/4-40 UNS-2A

Temperature Range:
-22ºF to 185ºF (–30ºC to 85ºC)

Contact current max:
5A

Contact Voltage AC:
115V nominal

Contact Voltage DC:
28V

Contact configuration:
Single-pole, double-throw (SPDT)

Switch operation:
ON-ON
