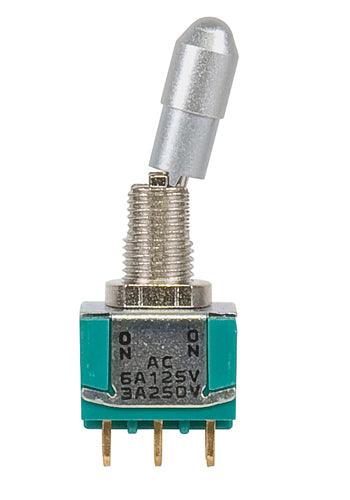

TOGGLE SWITCH/DPDT (double pole double throw), ON-NONE-ON, hole mount, terminal seal, gold flash over silver plating, green.

TE CONNECTIVITYSKU: MTL-206N

Price:
Sale price$37.99
Stock:
In stock

Description

The Green Series Toggle Switches feature silver slugs with all contact surfaces gold-flashed to inhibit oxidation and provide very low initial contact resistance. The design also includes overmolded terminals that eliminate voids typically found with epoxy-sealed terminals.

The MTL-206D is a double-pole, double-throw (DPDT) toggle switch with ON-ON operation and a 2-position lever lock.

Features

  • Wire lug and PC terminals

  • Threaded panel mount

  • Overmolded terminals

  • 10 mΩ maximum initial contact resistance

  • 1,000 MΩ minimum insulation resistance

  • 1500 VRMS minimum dielectric strength at sea level

  • RoHS compliant

  • Break-before-make contact timing

Specifications

Bushing: 1/4-40 UNS-2A

Temperature Range: -4°F to +176°F (-20°C to +80°C)

Maximum Contact Current:
6 A @ 125 VAC
3 A @ 250 VAC
4 A @ 28 VDC

Contact Voltage AC: 115 V nominal

Contact Voltage DC: 28 V

Contact Configuration: Double-pole, double-throw (DPDT)

Switch Operation: ON-ON
