TELEPHONE PLUG/U174/U, commercial, non mil spec, 4 conductor, overall diameter of plug housing .500 inch, overall length: 1.906 inch, contact diameter: .281 inch , plug contact length: .761 inch.

NEXUSSKU: TP-120

Price:
Sale price$55.76
Stock:
In stock

Description

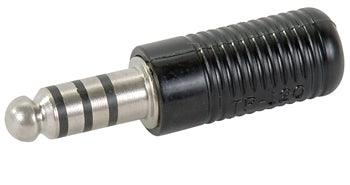

The TP-120 telephone plug is a four-conductor plug with nickel-plated, brass contacts molded into a plastic body.

Features

  • 4-Conductor telephone plug
  • Mates with Nexus series TJ-120, TJ-102, and TJ-101 jacks
  • Includes: TP-120-8 shell, TP-120-5 stack assembly, TP-120-1 contact #1, TP-120-2 contact #2, TP-120-3 contact #3, TP-120-4 contact #4, TP-120-6 cable retainer

Specifications

Dimensions:
1.906 x 1/2 in

Number of Conductors:
4

Contact Dimeter:
0.281 in

Contact Length:
0.761 in

Shell Material:
Plastic

Contact Material:
nickel-plated brass

Solder Contact Terminals:
pre-tinned over nickel plating

Contact Resistance:
≤ 0.02Ω

Insulation Resistance:
≥1,000 MΩ

Dielectric Withstanding Voltage:
≥ 500 V RMS

Insertion Force:
13 lb, maximum

Withdrawal Force:
6 – 10 lb
