TELEPHONE JACK/U92B/U, front mounted, commercial / military, 4 conductor, overall length 1.125 inch, contact diameter .285 inch. For use with TP-101, TP-102, TP-120 plugs.

NEXUSSKU: TJT-120

Price:
Sale price$34.34
Stock:
In stock

Description

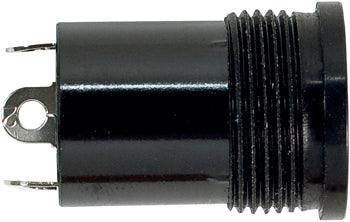

TJT-120 Threaded Front-Mounted Telephone Jack

The TJT-120 threaded front-mounted telephone jack securely mounts to aircraft panels by screwing into a threaded mounting hole and securing with a nut and lock washer from behind. Mates with Nexus series TP-120, TP-101, and TP-102 plugs.

Features

  • Panel-mount version of the TJ-120 jack
  • Mates with Nexus series TP-120, TP-101, and TP-102 plugs
  • Includes (1) TJT-120-2 nut and (1) TJT-120-3 lock washer

Specifications

Dimensions: 0.719 x 0.719 x 1.125 in
Number of Conductors: 4
Contact Diameter: 0.285 in
Contact Length: 0.188 in
Shell Material: Plastic
Contact Material: Nickel-plated, beryllium copper
Thread: 11/16-24 UNEF-2A
Solder Contact Terminals: Pre-tinned over nickel plating
Contact Resistance: ≤0.02 Ω
Insulation Resistance: ≥1,000 mΩ
Dielectric Withstanding Voltage: >500 V RMS
Insertion Force: 13 lb maximum
Withdrawal Force: 6–10 lb
