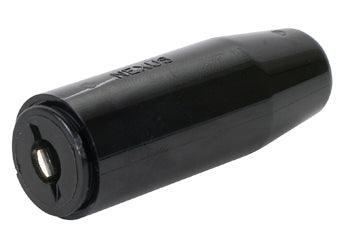

TELEPHONE JACK/U-92A/U, military, M9177/3-1, 4 conductor, overall diameter of plug housing .828 inch, overall length: 2.312 inch, contact diameter: .285 inch. For use with TP-101, TP-102, TP-120.

NEXUSSKU: TJ-102

Price:
Sale price$38.00
Stock:
In stock

Description

The TJ-102 in-line jack has four conductors and constructed to accommodate larger cable diameters. Mates with Nexus series TP-120, TP-101, TPSJ-101, and TP-102 plugs.

Features

  • Glass-filled nylon body
  • Mates with Nexus series TP-120, TP-101, TPSJ-101, and TP-102 plugs
  • Includes jack assembly and shell (TJ-102-6), TP-102-20 crimp sleeve, TJ-102-7 ring assemble

Specifications

Dimensions:
0.828 x 0.828 x 2.312 in

Number of Conductors:
4

Shell Material:
plastic

Contact Material:
nickel-plated, beryllium copper

Standard:
MIL-C-9177

Solder Contact Terminals:
Pre-tinned over nickel plating

Contact Resistance:
≤ 0.02 Ω

Insulation Resistance:
≥ 1,000 mΩ

Dielectric Withstanding Voltage:
≥ 500 V RMS

Insertion Force:
13 lb, maximum

Withdrawal Force:
6 to 10 lb

Application:
ruggedized commercial & military
