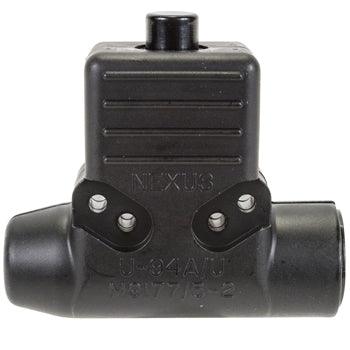

TELEPHONE JACK/PTT, U94A/U, with push to talk button and metal clip, 4 conductor, female, .285 inch jack diameter.

NEXUSSKU: TJS-102

Price:
Sale price$83.00
Stock:
In stock

Description

The TJS-102 telephone jack switch features a momentary push button switch with included clothing clip. The four-conductor jack mates with the Nexus series TP-120, TP-101, and TP-102 plugs.

Features

  • Momentary push button switch
  • Clothing Clip
  • The four-conductor jack mates with the Nexus series TP-120, TP-101, and TP-102 plugs
  • Includes: TJS-102-3 jack assembly, TJS-102-1 shell assembly, TJS-104-3A clip assembly, (2) TSJ-102-11 4-40 screws, (2) TJS-102-15 4-40 screws, (2)TJ-106-13 lock washer, (2)TJ-106-14 nut, TP-102-20 crimp sleeve

Specifications

Dimensions:
1.625 x 2.156 x 2.359 in

Number of Conductors:
4

Contact Diameter:
0.285 in

Shell Material:
plastic

Contact Material:
nickel-plated, beryllium copper

Standard:
MIL-C-9177

Solder Contact Terminals:
Pre-tinned over nickel plating

Contact Resistance:
≤ 0.02 Ω

Insulation Resistance:
≥ 1,000 mΩ

Dielectric Withstanding Voltage:
≥ 500 V RMS

Insertion Force:
13 lb, maximum

Withdrawal Force:
6 to 10 lb
