TELEPHONE JACK/military, 4 conductor, overall diameter of plug housing .625 inch, overall length: 2.234 inch, contact diameter: .285 inch. For use with TP-101, TP-102.

NEXUSSKU: TJ-101

Price:
Sale price$63.98
Stock:
In stock

Description

The TP-101 in-line plug connector has four-conductors that are made of a nickel-plated beryllium copper material. Mates with Nexus Series TP-120, TP-101, TPSJ-101 and TP-102 plugs.

Features

  • Glass-filled nylon plastic body
  • Mates with Nexus Series TP-120, TP-101, TPSJ-101 and TP-102 plugs

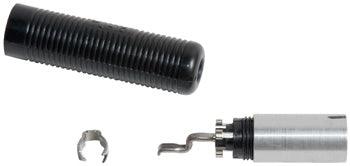

  • Includes: TJ-101-10 telephone jack assembly, TJ-101-3 shell, TJ-105-13 strain relief clamp

Specifications

Dimensions:
0.625 x 0.625 x 2.234 in

Number of Conductors:
4

Shell Material:
plastic

Contact Material:
Nickel-plated, beryllium

Body Material:
plastic

Standard:
MIL-C-9177

Solder Contact Terminals:
Pre-tinned over nickel plating

Contact Resistance:
≤0.02 Ω

Insulation Resistance:
≥1,000 mΩ

Dielectric Withstanding Voltage (RMS):
≥ 500 V

Insertion Force:
13 lb, maximum

Withdrawal Force:
6 to 10 lb
