Description

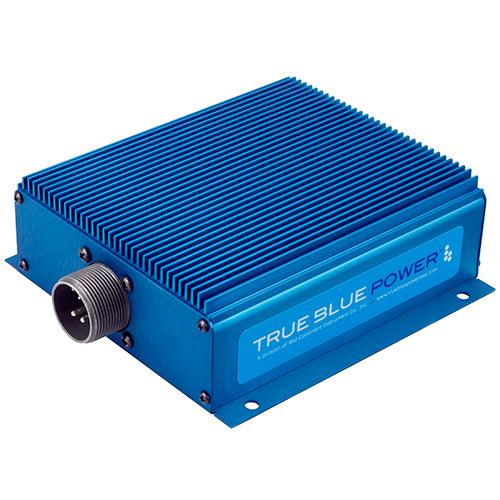

The TC280 AC-to-DC Converter provides 280 watts from an aircraft's 115 VAC input. The TC280 runs cooler and features a fan-less design. This AC/DC converter produces enough energy to power electronic equipment throughout the aircraft — including in-seat, cabin and cockpit power applications.
Features
The TC280 AC/DC converter (TC280):
- 280 watt, 28 VDC output
- 115 VAC, 350 MHz – 800 MHz input voltage
Features:
- Supplies 280 watts of 28-volt power
- Compact and lightweight — only 2 lb
- input transition, overload and short circuit protection, as well as temperature monitoring
- 88% efficient
- Remote On/Off
- No cooling required
- Mount to the floor, cabin wall, or outside pressure vessel
- Designed in Wichita, Kanas, USA
Specifications
Model Number:
TC280
Input Voltage:
115 ±10A, nominal
Input current:
2.8A, nominal
Output Voltage:
28 VDC ±0.5 VDC
Output power:
280 watt
Altitude:
55,000 ft
Temperature:
-65°F to 160°F (-55°C to 70°C)
Mating Connector:
MS3106A-18-9S (MCI P/N 9016905-1)
Case:
Anodized aluminum extrusion, blue
Certifications:
FAA TSO-C71 certified
RTCA DO-160G qualified
