Description

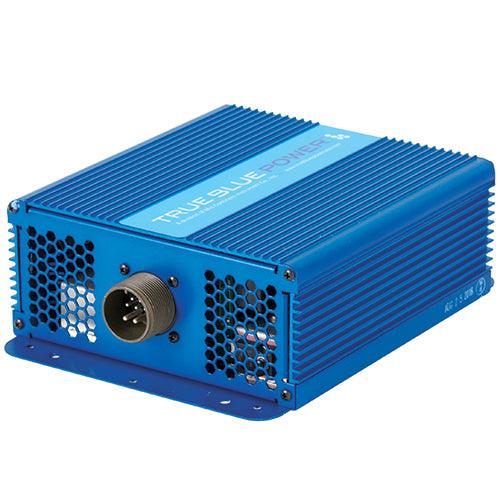

The TI500 DC-to-AC power inverter produces 500 watts at 115 volts of “wall outlet” power from an aircraft’s 28 VDC input. It has a small and lightweight footprint and includes the same connector as legacy designs. The TI500 features overload and short-circuit protection up to 150% of its rated load.
Features
- Supplies 500 watts to power multiple cabin accessories, laptops, cell phones, and MP3 players
- Compact and lightweight — only 3.9 lb
- 85% to 90% efficient
- Input transient, overload, and short-circuit protection for up to 150% of rated load
- Remote On/Off
- Designed and built in Wichita, Kansas, USA
Specifications
Weight:
3.9 lb
Dimensions:
6.34 x 8.15 x 2.74 in
Input Voltage:
20 VDC – 36 VDC
Input Current:
20A @ 28 VDC
Output Voltage:
115 VAC ±3%
Output Frequency:
60Hz @0.1%
Output Waveform:
Single phase, true sine wave, <3% THD
Altitude:
55,000 ft
Humidity:
Tested to greater than 95% for 10 days, temperature cycle of 75°F to 160°F
Temperatures:
-65°F to 160°F (-55°C to 71°C)
Intergral Cooling:
Dual, electronically-controlled brushless fans
Mating Connector:
MS3106A-18-9S (MCI P/N 9016905-1,-2)
Case:
Anodized aluminum extrusion, blue
Certification:
FAA TSO-C73 certified
RTCA DO-160F qualified
