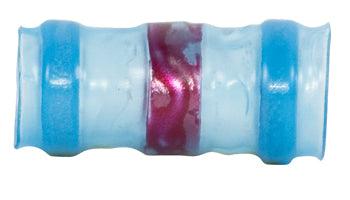

SOLDER SLEEVE/.300, maximum temperature: +150 degrees Celsius, minimum shrink temperature: +125 degrees Celsius

RAYCHEMSKU: S01-05-R

Price:
Sale price$191.00
Stock:
In stock

Description

S01 Series immersion-resistant solder termination sleeves (STS) provide a reliable method of terminating a wide variety of coaxial cables and screens. They can be used for wire-to-wire, wire-to-pin connections, and triaxial cable assemblies. STS are designed to solder, seal terminations, provide strain relief, and are installed by the application of heat.

This S01 solder sleeve terminal (S01-05-R) fits wire diameters of 0.100–0.275 inch (ØD). No lead wire or braid included.

Features

  • MIL-Spec AS83519/1 qualified
  • Immersion resistant
  • 150°C operating temperature
  • 183°C solder melt temperature
  • Convection or infrared heated installation
  • Sn63 (RMA flux)

Specifications

Cable Size: ØD: 0.100–0.275 in (see datasheet)
Operating Temperature: -55°C to 150°C
Solder Melt Temperature: 183°C
Solder Type: Sn63 (63% tin, 37% lead)
Temperature Indicating Paint (TI): Yes
Jacket Type: Polyvinylidene fluoride
Lead Wire Included: No
Braid Included: No
Environmental Seals: Yes
RoHS Compliant: No
Flux: Type ROL1 per ANSI-J-STD-004
