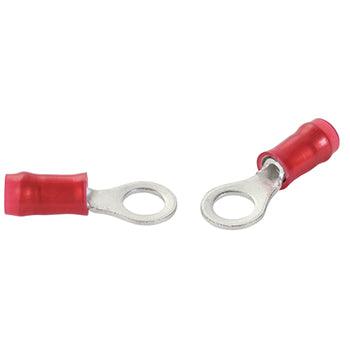

RING TERMINAL/#6 stud/tab size, red. PIDG series. For use with 22-16 gauge wire.

TE CONNECTIVITYSKU: 36152

Price:
Sale price$36.80
Stock:
In stock

Description

PIDG terminals are designed for uniform reliability in the harshest circuit environments, especially where high vibration and movement become factors. These terminals consist of of a nylon or PVC insulated body, plus a metal sleeve which clamps to the wire adding support. The design of the wire barrel resists vibration while allowing the wire to bend in any direction without damaging the insulation or conductor.

This PIDG Ring Terminal

  • Fits a #6 stud size
  • Fits 22–26 wire sizes
  • Red nylon insolation material

Features

  • Vibration resistant design
  • Allows wires to bend freely in any direction
  • PIDG terminal meet or exceed SAE AS7928 Type II, Class 1 & 2 requirements

Specifications

Splice Type:
Ring tongue

Crimp Barrel:
Tin-plated copper

Wire Size:
22-16 AWG

Stud size:
#6, M3.5

Terminal angle:
Straight

Voltage Max:
300V

Insulation sleeve color:
Red

Plating material:
Copper, tin

Operating Temperature:
105°C, maximum
