RING TERMINAL/#6 stud/tab size. PIDG series. For use with 22-16 gauge wire.

TE CONNECTIVITYSKU: 36150

Price:
Sale price$55.16
Stock:
In stock

Description

PIDG terminals are designed for uniform reliability in the harshest circuit environments, especially where high vibration and movement become factors. These terminals consist of of a nylon or PVC insulated body, plus a metal sleeve which clamps to the wire adding support. The design of the wire barrel resists vibration while allowing the wire to bend in any direction without damaging the insulation or conductor.

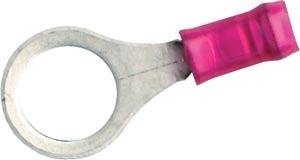

This ring terminal  has red insulation, a #6 stud size, 0.218""W, 0.672""L, 0.140"" max insulation Dia., and used on 22 – 16 AWG wire.

Features

  • Red nylon insulation material
  • Tin-plated copper conductor
  • Exceeds requirements of SAE AS7928, Type II, Class 1 and 2

Specifications

Color:
red

Contact Material:
tin-plated copper

Insulation:
nylon

Mounting Style:
screw

Product Type:
ring terminal

Stud / Tab Size:
#6 (M3.5)

Width:
0.218""

Length:
0.672""

Max Wire Insulation Diameter:
0.140""

Termination Style:
crimp

Voltage Rating:
300V

Wire Gauge:
22 – 16 AWG
