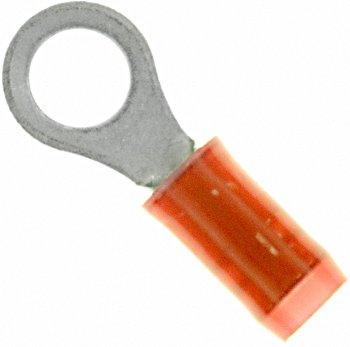

RING TERMINAL/#10 stud/tab size, female, insulation, red, tin plating, copper material, nylon insulation, 21.44 mm in length, 300 VAC. For use with 22-16 gauge wire.

TE CONNECTIVITYSKU: 36153

Price:
Sale price$328.40
Stock:
In stock

Description

PIDG terminals are designed for uniform reliability in the harshest circuit environments, especially where high vibration and movement become factors. These terminals consist of of a nylon or PVC insulated body, plus a metal sleeve which clamps to the wire adding support. The design of the wire barrel resists vibration while allowing the wire to bend in any direction without damaging the insulation or conductor.


This ring terminal lug  has a #10 stud size, red insulation, and used on 22 – 16 AWG wire.

Features

  • Red nylon insulation material
  • Tin-plated copper conductor
  • Exceeds requirements of SAE AS7928, Type II, Class 1 and 2

Specifications

Dimensions:
21.44 x 7.92 mm

Color:
Red

Contact Material:
tin-plated copper

Insulation:
nylon

Mounting Angle:
straight

Mounting Style:
screw

Product Type:
ring terminal

Termination Style:
crimp

Voltage Rating:
300V

Wire Gauge:
22 – 16 AWG
