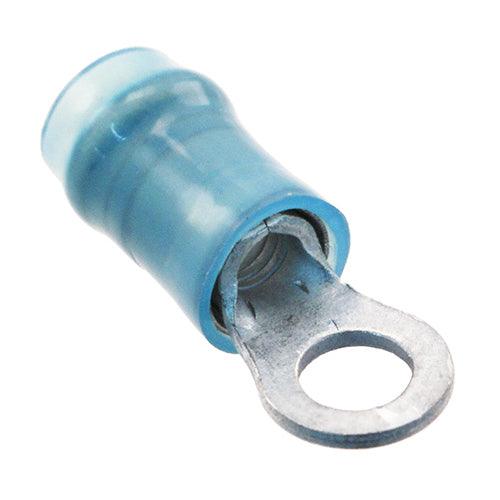

RING TERMINAL/#10 stud/tab size, female, insulated, blue, tin plating, copper material, nylon insulation, 300 VAC. For use with 16-14 gauge wire.

TE CONNECTIVITYSKU: 36160

Price:
Sale price$47.78
Stock:
In stock

Description

PIDG terminals are designed for uniform reliability in the harshest circuit environments, especially where high vibration and movement become factors. These terminals consist of of a nylon or PVC insulated body, plus a metal sleeve which clamps to the wire adding support. The design of the wire barrel resists vibration while allowing the wire to bend in any direction without damaging the insulation or conductor.

Features

  • Fits a #10 stud size
  • Fits 16 – 14 AWG wire sizes
  • Blue nylon insulation material
  • Tin-plated, copper conductor

Features:

  • Vibration resistant design
  • Allows wires to bend freely in any direction
  • PIDG terminal meet or exceed SAE AS7928 Type II, Class 1 & 2 requirements

Specifications

Weight:
1.021 g (per piece)

Stud Size:
#10

AWG Size:
16 AWG – 14 AWG

Color:
blue

Barrel Type:
closed

Insulated:
yes

Wire/Cable Type:
regular wire

Termination Angle:
straight

Current Capacity:
300V, max

Plating Material:
tin-plated copper

Operating Temperature:
105°C (221°F)
