Description

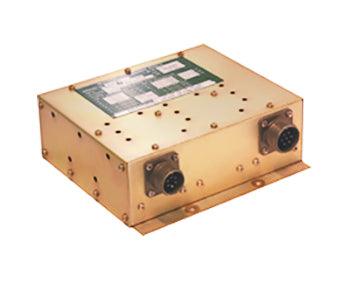

The LT-3xx series is a pulse width-modulated DC to DC converters that provides regulated multiple output power. The converter transforms unregulated 28 VDC to regulated DC output that is adjustable via a remote control potentiometer or voltage control models. The LT-3xx series is designed to control light intensity of incandescent bulbs in lighting systems.
Features
- State of the art design for regulation and positive logic for output over voltage protection
- Maximum output voltage is adjustable with an internal trim pot
- Designed to meet various applicable portions MIL-STD 704 notice 3, MiL-STD-202 and MIL-T-5422F class IA
- LT-3xx series is serviceable, small, and lightweight
- Special orders any three combinations of LT-52A, LT-53, LT-70, LT-73, LT-100 and LT-103 can be supplied
Specifications
Weight:
3.6 lbs (1634 g)
Dimensions:
6.5 x 6.7 x 2.4 in (16.5 x 17 x 6 cm)
Input Voltage:
28 VDC nom., 20 to 40 VDC
Output Voltage:
Adjustable with external 5K ohm,1/2 W rheostat or voltage 0-5 VDC.
Regulation:
2% for line, 2% load and 2.5% temperature. Common mode isolation = 40 db.
Output Ripple:
25 mVp-p or less
Protection:
Overload: Input and output current pulse when overload exceeds approximately 125% of rating
Overvoltage: Output voltage is limited toapproximately 125% of rating eventhough remote control rheostat opens or internal failure occurs.
Temperature:
-55°C to 71°C (sufficient cooling required @ +71'C ambient)
Altitude:
55,000 ft
Max. Power Rating:
150 W
Input Voltage:
20 to 40 VDC
Input Current @ FIL:
20 VDC: 11.8 ADC
28 VDC: 7.2 ADC
Output Voltage:
0 to 5 VDC
Output Current:
30 ADC
Efficiency:
75%
