Description

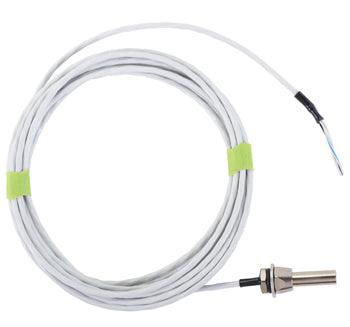

he digital probe provides temperature readings to digital outside/cabin air temperature gauges. The 12 ft length white cable allows the probe to be remotely installed. This model can only be used for units with "D" in the serial number.
Features
-
Unique 1-Wire® interface requires only one port pin for communication
-
Each device has a unique 64-bit serial code stored in an onboard ROM
-
Multi-drop capability simplifies distributed temperature sensing applications
-
Requires no external components
-
Can be powered from data line. Power supply range is 3.0 to 5.5 Volts
-
Measures temperatures from -55°C to +125°C (-67°F to +257°F) ±0.5°C accuracy from -10°C to +85°C
-
Thermometer resolution is user-selectable from 9 to 12 bits
-
Converts temperature to 12-bit digital word in 750ms (max.)
-
User-definable nonvolatile (NV) alarm settings
-
Alarm search command identifies and addresses devices whose temperature is outside of programmed limits (temperature alarm condition)
-
Available in 8-pin SO (150mil), 8-pin μSOP, and 3-pin TO-92 packages
-
Software compatible with the DS1822
-
Applications include thermostatic controls, industrial systems, consumer products, thermometers, or any thermally sensitive system
Specifications
Dimensions:
1.3 in. total probe length
Cable Length:
12 ft
Hex Nut:
7/16 in
Aircraft Mounting Surface Hole:
5/16 in
Compatible Series:
301, 303, 307, 655 (with "D" in the serial number)
