MARKER BEACON ANTENNA/BNC Connector, 75 MHz, 50 Ohms, Airspeed 400 Knots, 4 Hole Mount & a White Finish.

COMANT INDUSTRIESSKU: CI-118-1

Price:
Sale price$1,058.42
Stock:
In stock

Description

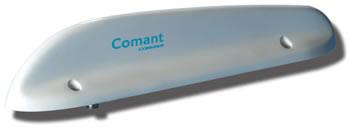

The CI 118-1 antenna is a four-through-hole-mount, low-drag, low-profile, boat-style marker beacon antenna with a BNC port. It features a 75 MHz frequency that supports high-sensitivity marker beacon receivers and is suitable for bottom mounting with both light and heavy fixed-wing single-engine and multi-engine aircraft. It is DC grounded to minimize accumulation of precipitation static and is Skydrol and rain erosion resistant.

Features

  • 75 MHz frequency
  • Aerodynamic base
  • 4-hole mounting
  • Low-drag, low-profile, boat-style housing
  • For light and heavy fixed-wing single-engine and multi-engine aircraft

Specifications

Weight:
0.70 lb

Height:
2.40 in

Frequency:
75 MHz

VSWR:
1.5:1

Polarization:
Parallel to mounting plane

Radiation Pattern:
Primarily Downward

Impedance RF:
50Ω

Resistance DC:
DC Grounded

Power RF:
Receive Only

Finish:
Glossy White

Connector:
BNC (female)

Airspeed:
400 kt

Temperature Rating:
-55ºC to 85ºC

Altitude:
45,000 ft

FAA TSO:
C35d, Class A

RTCA Environmental:
DO-138
