Description

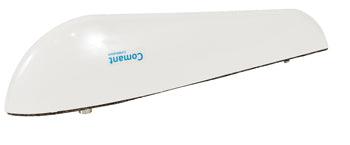

The CI 102 marker beacon antenna is designed for use with modern, high sensitivity marker beacon receivers. Small and lightweight, this marker beacon features 4-hole internal mounting for simple installation. The antenna assembly is enclosed in an injection molded radome which is impervious to the tough environments typical of the underside of an aircraft.
Features
- DC grounded to minimize accumulation of precipitation static
- Skydrol and rain erosion resistant
- Designed for single and twin engine piston aircraft
- 4 hole internal mount
- Airspeed 400 Knots
- 75 MHz
- Includes gasket C10208
Specifications
Weight:
0.6 lb
Height:
2.15 in
Frequency:
75 MHz
VSWR:
1.5:1 Maximum / Return Loss -13.98 dB
Polarization:
Parallel to mounting plane
Radiation Pattern:
E-Field parallel with flight direction
Impedance RF:
50Ω
Resistance DC:
DC grounded
Power RF:
Receive only
Finish:
Valox Polyester
Connector:
BNC (female)
Temperature:
-55 to 85 C
Altitude:
45,000 ft
FAA TSO:
C35d, Class A
RTCA MOPS:
DO 138, DO 143
RTCA Environmental:
DO-160A
Gasket:
C10208
