Description

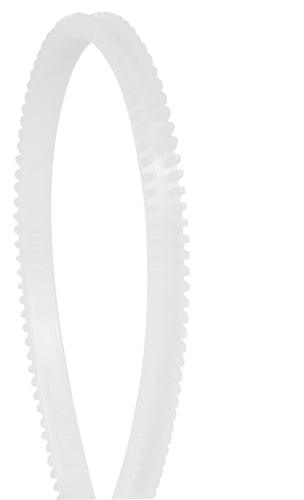

Gromstrip is a continuous length, extruded U-channel grommet that is used as a protective covering over sharp edges for added protection of wire and cable bundles. Gromstrip is easy to install into any hole, regardless of configuration — simply cut to the desired length and press into place. Minimal panel space is required for Gromstrip to snugly grip the surface and will protect any wires passing through against fraying, cutting, or abrasion.
This Nylon MIL-SPEC 21266 gromstrip (EDMO# GSNCM-1) and fits panels from 0.015 – 0.052 inch thick, and made of nylon Gromstrip used where abrasion-resistant material is desired.
- Fits panels from 0.015 – 0.052 inch thick
- Nylon Gromstrip used where abrasion-resistant material is desired
Features:
- MIL-SPEC 21266 Gromstrip
- Protects wires from sharp edges
- Simply to install
- Cut to desired length
- Higher operating temperature and better dielectric constant than polyethylene
Specifications
Overall Width (dimension A):
0.150 in (3.81 mm)
Inside Width (dimension b):
0.056 in (1.42 mm)
Cushion (dimension C):
0.055 in (1.40 mm)
Depth (dimension D):
0.10 in (2.54 mm)
Panel Thickness:
0.015 – 0.052 in (0.38 – 1.32 in)
