Description

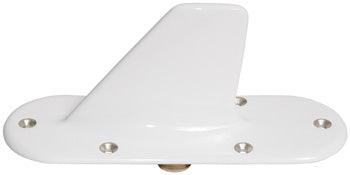

The DM NI50 reduces maintenance costs due to its low profile, all-metal blade that provides unequalled mechanical strength and reliability. The NI50 antennas are engineered for use on business, commercial, and military aircraft. NI50 DME antennas can be used will all standard L-Band equipment operating on the 960 MHz to 1,220 MHz frequency band. These antennas are interchangeable with with virtually all L-band blade, flush mountable antennas currently in service on commercial and military aircraft.
Features
- Extremely high side load strength guards against breakage by ground handling gear
- Completely sealed construction prevents moisture intrusion
- Lightning protection circuits safeguard electronic equipment
- Low-profile, all- metal blade antenna
- Direct current ground design
- Interchangeable with most L-band blade and flush mount antennas
- Multiple color and connector configurations available
Specifications
Weight:
4 oz
Height:
2.2 in
Frequency Range:
960 MHz – 1,220 MHz
VSWR:
< 1.7:1 (960 MHz – 1,220 MHz)
< 1.5:1 (1,000 MHz – 1,100 MHz)
Gain:
0 dB, average @ horizon
Impedance:
RF: 50Ω
DC: short circuit
Polarization:
vertical
Radiation Pattern:
hemispherical
Power Handling:
3kW (peak), 100 watts (average)
ENVIRONMENTAL:
Aerodynamic Drag (@ sea level):
2 oz (mach 0.5)
4.5 oz (mach 0.8)
Side Load:
TSO C34c
ARINC:
532 E (ATC transponder)
521 D (DME)
FAA:
TSO-C74 (ATC transponder)
TSO-C66a (DME)
