Description

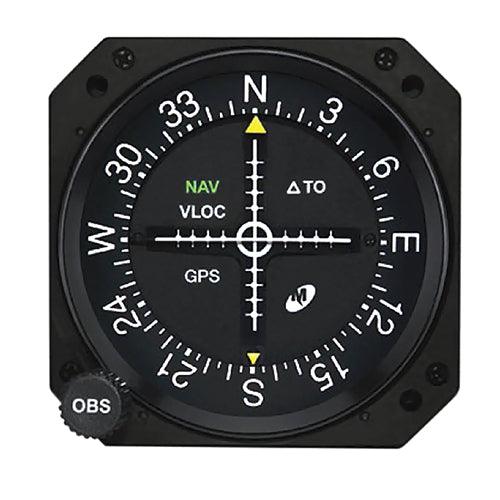

The MD200 Series Course Deviation Indicator is designed to work with VHF and GPS navigational equipment to provide OMNI (VOR), GPS, localizer (LOC), and glideslope information. The MD200 is designed to accept DC signals from Left-Right and Up/Down pointer deviation and Valid/Invalid (flag) status from a remote mounted VOR converter. It also provides annunciations for NAV, VLOC, and GPS indication of the incoming source or mode and a TO or FR (from) annunciation to indicate direction of the ground signal or course waypoint from the aircraft.
Features
- Fits standard 3-1/8 inch panel cutout
- All metal construction with stainless steel ball bearings in critical areas
- Deviation bars/pointers hide from view when invalid
- LED annunciations for NAV, GPS, VLOC and To/From indication
- True OBS course resolver output
- Compatible with WAAS GPS receivers
- Pin-for-pin replacement for all legacy MD200 models
- Optional course datum synchro output (MD200-707)
- High-quality D-Sub connectors included with gold-plated pins
- FAA TSO and ETSO certified for use with all GPS and VOR systems
Specifications
Weight:
1.3 lbs
Voltage Input:
12 – 32 VDC
Current Input:
0.2 A (max)
Lighting:
5V, 14V, or 28V automatic photocell dimming of annunciators
Cutout:
Standard 3 1/8” round
Temperature:
–55°C to +70°C (–67°F to +158°F)
Altitude:
0 to 55,000 ft
Humidity:
95% non-condensing
Vibration:
DO-160B, Cat. M and N
Certification:
FAA TSO certified to C34e, C36e, C40c
EASA ETSO certified to C34e, C36e, 2C40c
RTCA DO-1606 qualified
Mounting:
Panel, rear mount
Connector(s):
25-pin male D-Subminiature
9-pin male D-Subminiature
Mating Connector(s):
25-pin female D-Subminiature (included)
