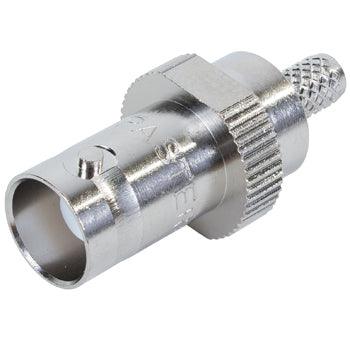

CONNECTOR/BNC female, 50 ohm crimp/solder attachment for RG55, RG141, RG142, RG223, RG400

PASTERNACKSKU: PE4397

Price:
Sale price$42.86
Stock:
In stock

Description

he PE4397 BNC Female Connector features a crimp/solder attachment for RG55, RG141, RG142, RG223, and RG400 coaxial cables. It supports frequencies up to 4 GHz and provides a VSWR of 1.3:1. The connector features a nickel-plated brass body with a gold-plated brass contact for reliable electrical performance and durability.

Features

  • BNC female connector
  • Crimp/solder attachment
  • Compatible with RG55, RG141, RG142, RG223, and RG400 coaxial cables
  • 50 Ω impedance
  • Maximum operating frequency: 4 GHz
  • VSWR: 1.3:1
  • Gold-plated brass contact
  • Complies with MIL-STD-348A

Specifications

Part Number: PE4397
Weight: 0.027 lb (12.25 g)
Dimensions: 1.24 x 0.571 x 0.5 in. (31.5 x 14.5 x 12.7 mm)
Body Geometry: Straight
Compatible Cable Types: RG55, RG141, RG142, RG223, RG400
Contacts: Gold-plated brass
Minimum Contact Plating: 30 µ-in.
