Description

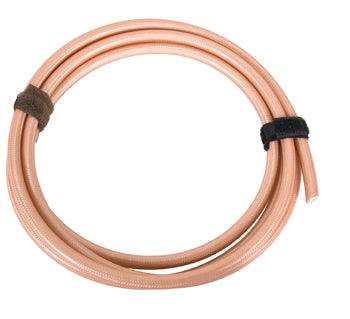

RG-400 coaxial cable is designed for high-temperature, high-performance, and low-noise applications and meets MIL-C-17 specifications. It features a silver-plated stranded copper center conductor and two braided shields for reliable electrical performance in demanding environments.
Features
- Designed for high-performance applications
- Suitable for high-temperature environments
- Low-noise performance
- Silver-plated stranded copper conductor
- Two braided shields
- Meets MIL-C-17 specifications
Specifications
- Center Conductor: 0.0384 in (19/0.008 in)
- Dielectric: 0.116 in PTFE
- Shield: SPC (2)
- Jacket: FEP
- Overall Diameter: 0.195 in
- Minimum Recommended Bend Radius: 1 in
- Operating Temperature: -55°C to 200°C
- Weight: 50 lb/MFT
- Impedance: 50Ω ±2Ω
- Capacitance: 29.4 pF/ft
- Maximum Voltage: 1,900 V
- Maximum Frequency: 12.4 GHz
Attenuation (Typical)
- 100 MHz: 4.3 dB/100 ft (4.5 dB/100 ft maximum)
- 400 MHz: 8.6 dB/100 ft (10.5 dB/100 ft maximum)
- 1 GHz: 14.1 dB/100 ft (18.1 dB/100 ft maximum)
- 2.4 GHz: 22.6 dB/100 ft (30.2 dB/100 ft maximum)
- 5 GHz: 35.6 dB/100 ft (52.1 dB/100 ft maximum)
- 10 GHz: 61.6 dB/100 ft (78.0 dB/100 ft maximum)
