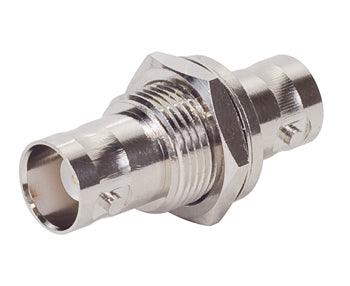

COAX ADAPTER/BNC female to BNC female, bulkhead hermetically sealed

PASTERNACKSKU: PE9093

Price:
Sale price$108.94
Stock:
In stock

Description

The PE9093 is a hermetically sealed bulkhead connector featuring BNC female connectors on both ends. Designed for reliable high-frequency applications, it supports frequencies up to 4 GHz and provides a VSWR of 1.5:1. The connector features a nickel-plated brass body and gold-plated brass contacts for durable and reliable electrical performance.

Features

  • BNC female-to-female connector
  • Hermetically sealed construction
  • 50 Ω impedance
  • Maximum operating frequency: 4 GHz
  • VSWR: 1.5:1
  • Gold-plated brass contacts
  • Nickel-plated brass body
  • Complies with MIL-STD-348A
  • Suitable for general-purpose testing, vacuum test environments, and rack-mounted equipment

Specifications

Weight: 0.05 lb (22.68 g)
Dimensions: 1.555 x 0.689 x 0.689 in. (39.5 x 17.5 x 17.5 mm)
Connectors: BNC female, both ends
Impedance: 50 Ω
VSWR: 1.5:1
Frequency Range: Up to 4 GHz
Operating Voltage: 500 Vrms
Body Geometry: Straight
Mounting: Bulkhead
Application: General-purpose testing, vacuum test environments, and rack-mounted equipment
