Description

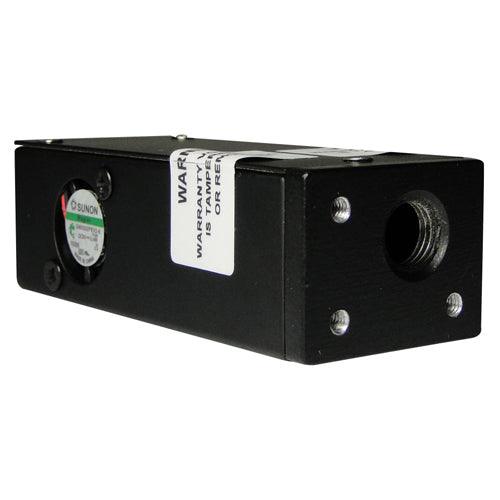

The AERO 452-201 is a remote mounted carbon monoxide (CO) detector is a TSO certified device designed especially for use in FAA certified aircraft. This compact and lightweight CO detector mounts to a small small space behind the panel and combines highly accurate CO detection for the cockpit with cabin pressure warning and than displays the data to an external unit. The included RS-232 serial connection allows CO level reporting and alerts to be displayed on a variety of Primary Flight Display (PFD), Multi-Function Display (MFD), and engine monitor products.
The built-in pressure sensor indicates altitude warnings at 10,000 feet, 12,500 feet, and 14,000 feet as a reminder to the pilot that supplemental oxygen should be used. These warnings can be displayed on an optional annunciator light.
Features
- TSO Certified and designed for certified single and multi-engine piston engine aircraft
- RS-232 Serial Connection included for reporting on external systems (see specs for list)
- Internal fan for optimum sensing
- Shielded to prevent EMI (Electro-Magnetic Interference) with aircraft systems
- Audible alarm with varying pitch at 85 dB
- LED Red and Amber CO Alert lights
- LED Green nominal indication light
- Built-in Temperature compensating circuit
Approved PFD, MFD, and Engine Monitor Products that will display the Aero 452 data:
- Garmin: Garmin G3X, Garmin G3X Touch, Garmin GNS 480, Garmin G900 (Garmin G1000 reporting available with Aero 452-201-010 OEM unit only)
- J.P. Instruments (JPI): EDM 730, EDM 830, EDM 900 Primary, EDM 900 Experimental, EDM 960 Twin
- Electronics Instruments (EI): MVP50P, MVP-50T, CGR-30P
- Advanced Flight System: AF2500/3500/4500/5000/5400/5500/5600/5800
- Grand Rapids Technologies (GRT): Sports SX, Horizon HX, and HXr EFIS Systems
- Ultra Electronics: AuRACLE CRM 2120
- MGL Avionics: XTreme EFIS
Specifications
Weight:
3.5 oz
Dimensions:
3.35 x 2.25 x 1.5 in
Input power:
14/28 VDC
Fan:
Internal for optimum sensing
Indicator Lights:
LED red and amber CO alert light
LED green nominal indication light
Temperature:
0°F to 110°F
CO sensor tested up to 15,000 ft
