Description

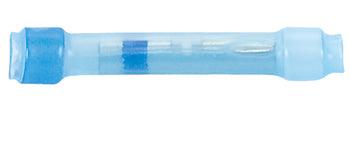

D-436 MiniSeal crimp splices are immersion-resistant, in-line tin-plated sealed crimp splices that are designed applications in temperatures up to 150°C. These crimp splices are small, light, and environmentally resistant meeting SAE-AS81824/1 requirements.
Features
- Meets SAE-AS81824/1 requirements
- Small size and light weight
- Provides insulation and strain relief
- Easy installation
Specifications
Splice Type:
Butt splice
Insulation Material:
Radiation cross-linked, heat-shrinkable polyvinylidene fluoride
Crimp Barrel:
tin-plated copper
Meltable Inserts:
Meltable thermoplastic
Barrel Inside Diameter:
2.79 mm (0.0.110 in)
Wire Size:20 - 16 AWG
1,058 - 2,680 CMA
0.39 - 1.34 mm
Maximum Number of Wires:
side 1: 2
side 2: 2
Operating Temperature:
150°C max.
Temperature Rating:
-55°C to 150°C (-67°F to 302°F)
Voltage Drop:
6.9mV at 4.5A vs 8.1mV for an equal length of wire
Tensile Strength:
exceeds strength of the conductor
Dielectric Strength:
2.5kV
Insulation Resistance:
5,000 MΩ
Government Certified:
no
Qualified to MIL-S-81824/1
