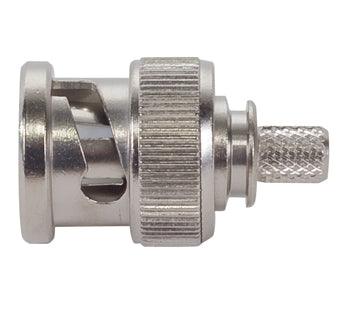

BNC CONNECTOR/Male, crimp, 50 Ohms, 4 GHz, straight. For use with RG-142, RG-142A, RG-142B, RG-400. ROHS compliant.

TE CONNECTIVITYSKU: 5225395-6

Price:
Sale price$1,323.20
Stock:
In stock

Description

The RF BNC connector with bayonet locking coupling provides highly reliable, quick connect/disconnect coaxial connections. Dual crimp, straight, BNC connector plug for use with RG 142, RG 142A, RG 142B coaxial cable.

Features

  • Dual crimp
  • Bayonet coupling
  • Wire and cable connector
  • Gasket connector seal
  • Single port
  • Straight body
  • 50 ohms
  • Gold-plated, brass center contact
  • Fluoropolymer dielectric material
  • Hex-style crimping recommended by manufacturer

Specifications

Dimensions:
0.572 in

RF Interface:
BNC

RF Connector Style:
Plug

Port Configuration:
Single port

Impedance:
50Ω

Orientation:
Straight

Body Material:
Brass

Body Plating Material:
Nickel

Contact Material:
Brass

Contact Plating Material:
Gold

Cable Type:
RG 142, RG 142A, RG 142B

Operating Temperature:
-55 – 85 °C (-67 – 185 °F)

Operating Frequency:
4 GHz

Compliance:
RoHS
