Description

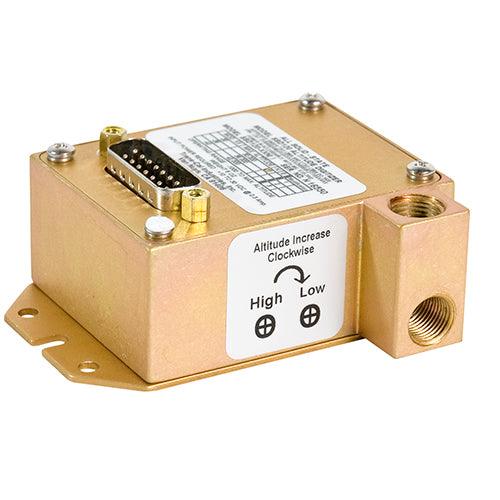

The SSD120-(XX)N Series High Altitude Nano Encoders are solid-state devices that measure air pressure and convert the measurements into ICAO parallel data for pressure altitude transmission via ICAO pressure altitude Gray Code output.
Features
- -1,000 ft to 35,000 ft altitude range
- 15-pin D-Subminiature mating connector (1 ea.)
- 15-pin connector back shell (1 ea.)
- 1/8 NPT nylon tube fitting (1 ea.)
- 1/4-inch tube polypropylene tee fitting (1 ea.)
- 1/8-27 NPT nylon plug (1 ea.)
- Dual 1/8-27 NPT static port inlets
- One ICAO pressure altitude Gray Code output
- Optional two or five RS-232 compliant data outputs
- Serial ports may be installer configured to transmit separate data protocols (message and baud data)
- Power, ground, and data I/O lines provided on industry-standard D-miniature connectors
- Corrosion-resistant aluminum housing
Specifications
Weight: 5.9 oz (low altitude); 6.3 oz (high altitude)
Altitude Ceiling: 30,000 to 42,000 ft (low altitude); 50,000 to 100,000 ft (high altitude)
ICAO Gray Code Output: Yes
RS-232 Output: Yes (except for SSD120-(XX)N model)
RS-485 Output: No (except for SSD120(XX)N-RS & RS1 models)
Operating Voltage: 12VDC @ 220mA / 28VDC @ 270mA (low altitude); 12VDC @ 55mA / 28VDC @ 60mA (high altitude)
Low Operating Temperature: -20°C / -55°C (E models)
High Operating Temperature: 70°C
Wet Environment: No
Electrical Connector: D-Subminiature 15-pin, SSD120-(XX)N; D-Subminiature 15-pin & 9-pin, -RS232 (low/high models); D-Subminiature 15-pin plug & 15-pin receptacle, -RS models
Static Line Connection: Dual 1/8-27 NPT (low altitude); Dual 1/8-27 NPT or 1/8 Tube Swivel Fitting (high altitude)
Approvals: TSO-C88a, ETSO-C88a, MIL-STD-704E, RTCA DO-160E
