Description
Protect-Fast Advanced Braided Wraps & Sleeving provide enhanced wiring protection and containment for cable assemblies, hoses, and wire harnesses used in demanding environments. Designed for applications involving high temperatures, vibration, chemical exposure, and flame, this sleeving helps protect wiring while providing containment and identification for easier management, troubleshooting, and retrofits.

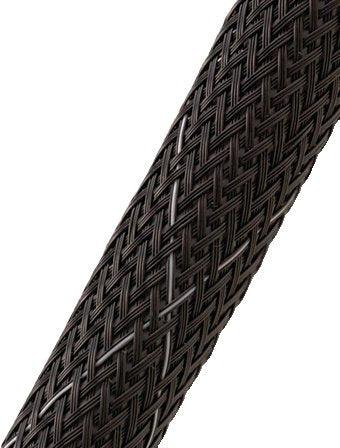

This Aero Braid sleeving features a 1/4-inch nominal size, black construction with a white tracer, and is supplied on a 200-foot roll.
Features
- Designed for demanding conditions, including high temperature, vibration, chemical, and fire exposure
- Provides protection against abrasion and cutting
- Tough and lightweight for easy installation
- Provides containment for easier cable management, troubleshooting, and retrofits
- UL and CSA Recognized Component
- Flame retardant per VW-1
- Halogen-free and RoHS compliant
- Excellent fray resistance
- Can be cleanly cut using a hot knife
Specifications
Part Number: PFR1BT0200
Nominal Size: 1/4 in.
Color: Black with white tracer
Roll Length: 200 ft.
Material: Polyethylene
Expansion: 150% sleeve
Flammability: VW-1
Industry Standard Approvals: FAR-25
Operating Temperature: -70°C to 125°C (-94°F to 257°F)
Melt Point: 250°C (482°F)
Chemical Resistance: Affected by chlorinated solvents and strong acids
Wall Thickness: 0.025 in.
Filament Diameter: 0.010 in.
