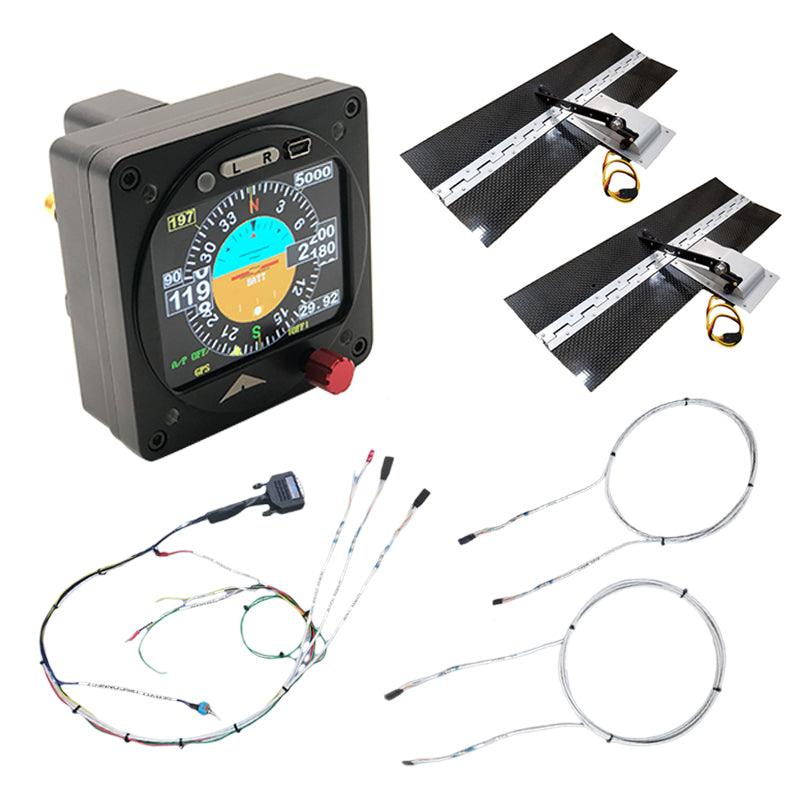

This turn-key kit contains everything you need to install your 3 1/8” autopilot instrument. The box contains:
- SuperECO STAND ALONE AUTOPILOT
- AILERON Trimtab Assembly. Includes servo, counterweight, and Double-sided Tape
- ELEVATOR Trimtab Assembly. Includes servo, counterweight, and Double-sided Tape
- Standard wire harness
- AILERON servo 20’ extension cable
- ELEVATOR servo 25’ extension cable
- Standard Spare Parts kit. (extra servo connectors, cotter pins, servo arms)
- Black Brass 6-32 x ¾” instrument fixing screws
- GPS antennae
- USB to Mini-USB charging and software update cable.
- 1 year Warranty
Note: Different configurations may be set up for different types of aircraft. These include different extension lengths, trim tab sizes, hinges, and pushrods.

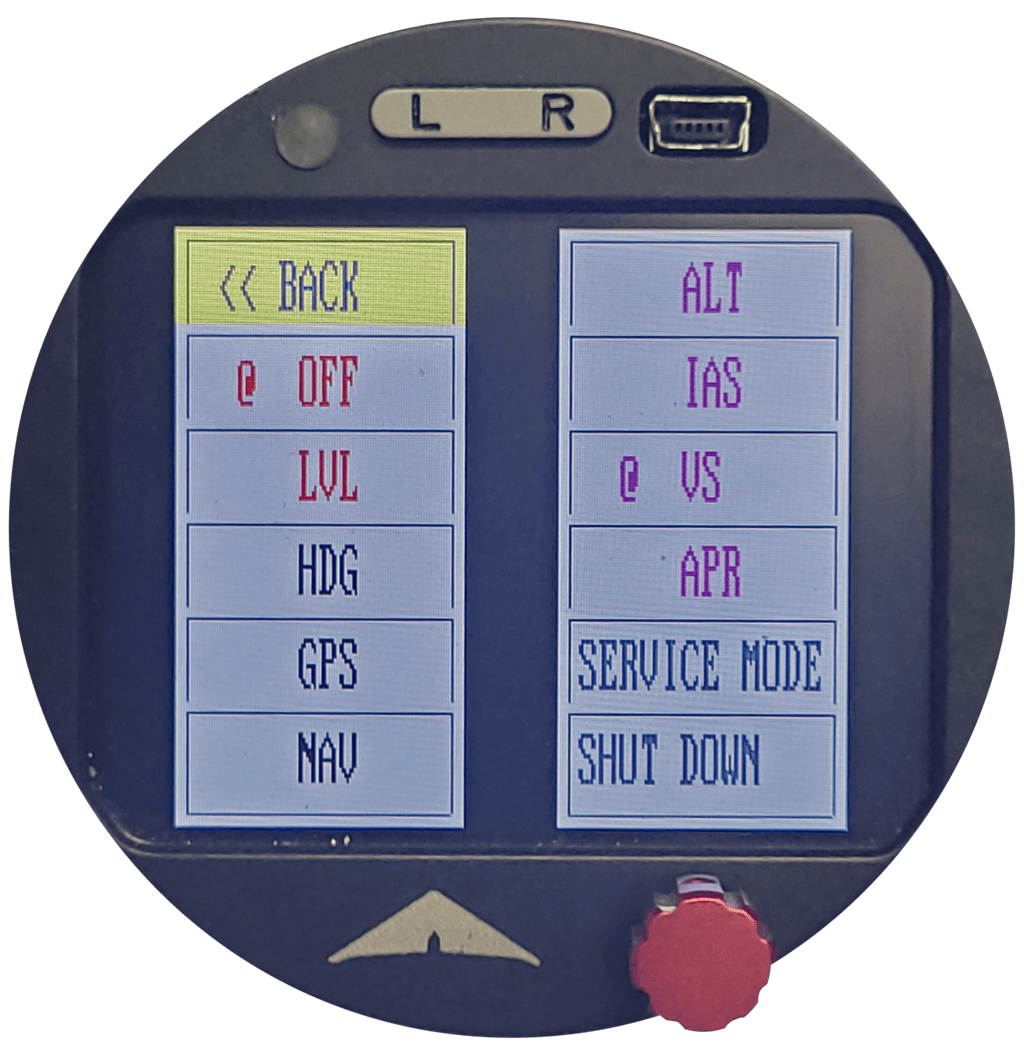

SuperECO features:
• LEVIL powered trim tab technology for roll and pitch.
• Heading mode (Magnetic Heading only certain instrument installations)
• Track Mode (uses internal or external GPS. Magnetic adjusted heading)
• VS mode. Climb/Descend or maintain a preselected altitude following constant Vertical Speed.
• IAS mode. Climb/Descend or maintain a preselected altitude following constant Indicated Air Speed.
• GPS Steering with external NMEA GPS
• CDI Navigation. CDI needle controlled by external NMEA GPS or optional RS-232 connection to Garmin SL-30 NAV/COM, shows CDI and GS (DAY VFR GUIDANCE, IFR NOT APPROVED).
• HOLD function. Will automatically keep the airplane flying a hold pattern. Hold entries are automatically calculated. The autopilot will fly an indefinite number of patterns until cancelled.
• ARC function. Will fly a DME arc around a GPS waypoint (from a NMEA external GPS). Can optionally exit the arc at a specified end course, ex. Runway track.
• Auto Envelope Protection. When the autopilot is off, trim tabs are still active. The system will correct for excessive or unwanted pilot inputs beyond a roll or pitch limit.
• Auto Trim. Since the system works with trim tabs auto trim is built-in the autopilot. No additional installation required. The airplane will always be in trim following autopilot disconnect.
• Autotuning. Autopilot software will autotune flying parameters for each different aircraft (COMING SOON).
This is a 3 1/8” SuperECO instrument without Autopilot servo output.

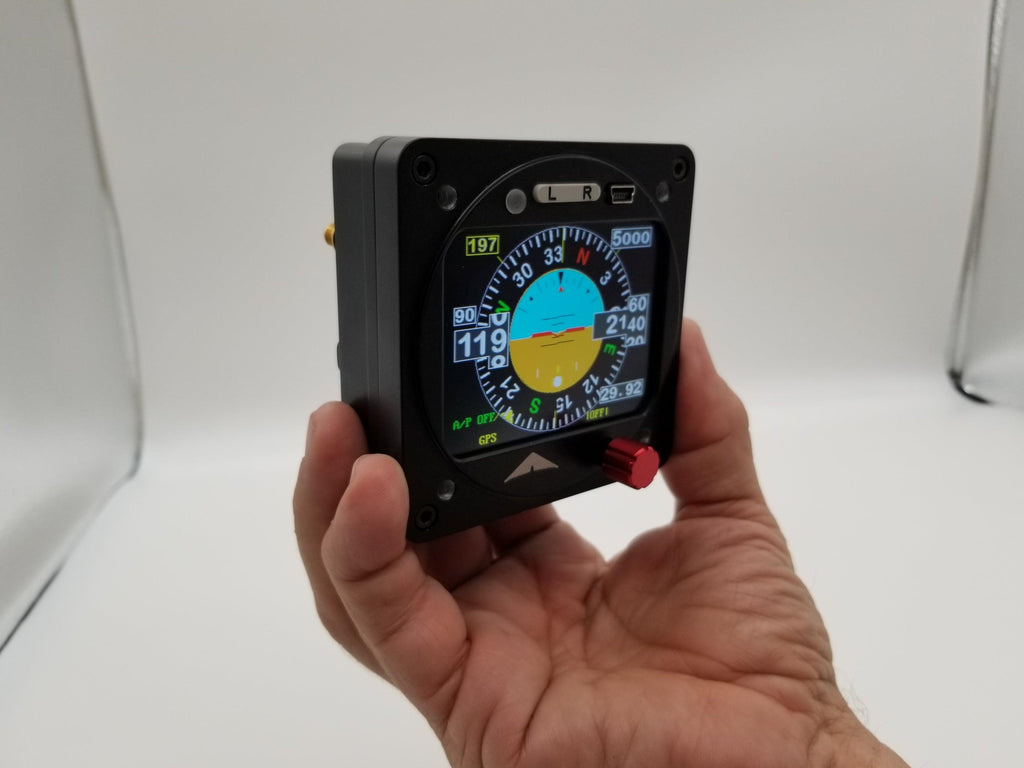

All in one instrument that can be used as a backup for your EFIS or as a primary means of navigation in an experimental aircraft.
DIMENSIONS
Display size
3 1/8” diagonal. (79 mm)
Display Resolution
320 x 240 pixels, backlit 1000 nits color LCD. Automatic night diming.
Input Voltage
11vdc to 30vdc
Size
3 1/8” (79mm) standard instrument. 3¼” x 3¼” x 2 1/8” (83mm x 83mm x 54mm)
Weight
9 Ounces (256g.) No battery
Included Battery
Emergency backup battery, 2 hour duration (instrument only). Weighs 2 ounces (57g.)
FEATURES
• Pressure Altitude with barometric adjust. Uses aircraft’s static port.
• Full Attitude indicator.
• Indicated Airspeed Window. IAS indication is done by plumbing to the Pitot Pressure port.
• Turn and slip indicator.
• Vertical Speed Indicator.
• Altitude preselect window.
• 360-degree compass rose heading indicator. Can show magnetic track or magnetic heading (magnetic heading accuracy depends on instrument installation).
• Heading Bug with heading indication window.
• HSI needle. When connected to an external GPS, a waypoint can simulate a VOR. Can be used to intersect radials. When connected to a Garmin SL-30 NAV/COM it can show horizontal VOR deviation and GS (OPTION).
AUTOPILOT AND INSTRUMENT ARE FOR EXPERIMENTAL AIRCRAFT
only and can only be used for day vfr flight guidance, ifr not approved.
SERVOS

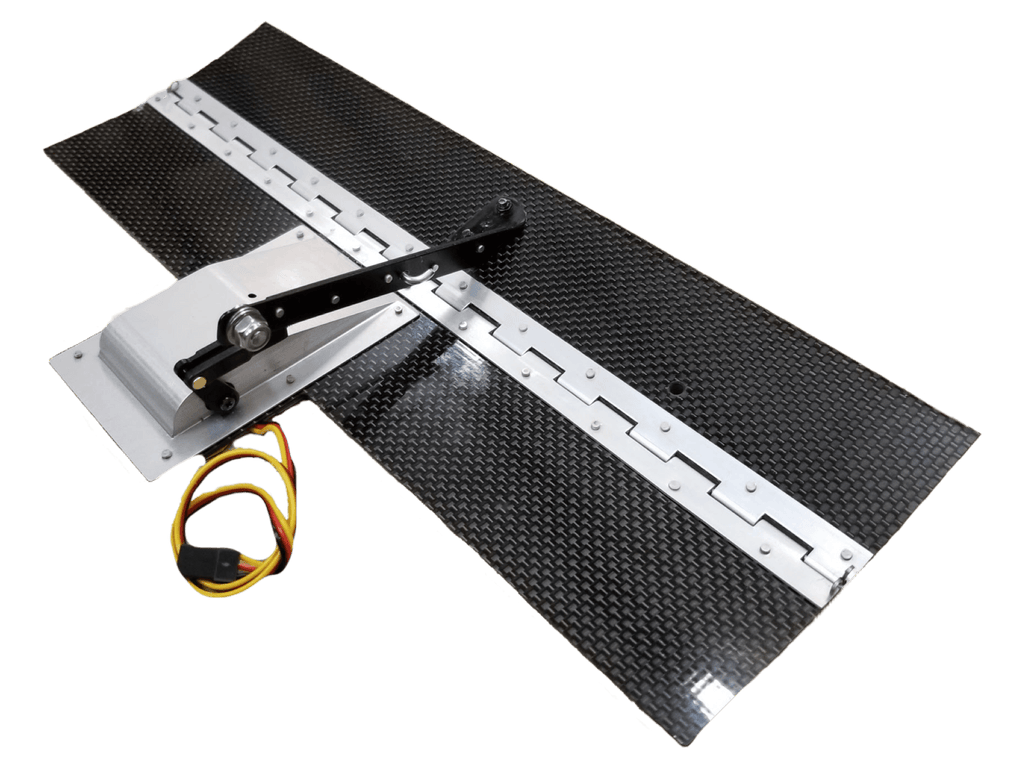

Trimtab package which includes hinged trim tab, servo, horns, links and servo base and industrial strength waterproof fixing adhesives. Weighs 5.3 ounces (150g).
CONTROLLED SURFACES SHOULD BE RE-BALANCED TO AVOID FLUTTER.
